使用python-docx-template渲染word文档

快速开始

To install using pip:

1
pip install docxtpl

or using conda:

1
conda install docxtpl --channel conda-forge

Usage:

1
2
3
4
5
6
from docxtpl import DocxTemplate

doc = DocxTemplate("my_word_template.docx")
context = { 'company_name' : "World company" }
doc.render(context)
doc.save("generated_doc.docx")

文档案例

官方文档

代码示例

模板示例

使用案例

需求

获取数据库的表结构、索引结构按照特定的文档格式生成word文档。

代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
import pymysql
from docxtpl import DocxTemplate

def getTableMetadata(host, user, password, dbName):
# 连接到数据库
conn = pymysql.connect(host=host, user=user, password=password, database=dbName)
cursor = conn.cursor()

# 获取所有表名及其备注
cursor.execute("SELECT TABLE_NAME, TABLE_COMMENT FROM information_schema.tables WHERE TABLE_SCHEMA = %s;", (dbName,))
tables = cursor.fetchall()

# 准备存储元数据的结构
metadata = []

for table in tables:
tableName = table[0]
tableRemark = table[1] # 表的备注

# 获取表的列信息
cursor.execute(f"SHOW FULL COLUMNS FROM {tableName};")
columns = cursor.fetchall()

# 组织列信息
columnList = []
for column in columns:
columnInfo = {
"name": column[0], # 列名
"type": column[1], # 数据类型
"key": column[4], # 主键
"empty": column[3], # 允许为空
"default": column[5] if column[5] is not None else "", # 默认值
"remark": column[8] if column[8] else "" # 列的备注
}
columnList.append(columnInfo)

# 获取表的索引信息
cursor.execute(f"SHOW INDEX FROM {tableName};")
indexes = cursor.fetchall()

# 组织索引信息
indexDict = {}
for index in indexes:
keyName = index[2] # 索引名称
columnName = index[4] # 列名
nonUnique = index[1] # 是否唯一
seqInIndex = index[3] # 列在索引中的顺序
indexType = index[10] # 索引类型

if keyName not in indexDict:
indexDict[keyName] = {
"nonUnique": "YES" if nonUnique else "NO", # 转换为 Yes/No
"seqInIndex": seqInIndex,
"indexType": indexType,
"columns": [] # 存储列名
}
indexDict[keyName]["columns"].append(columnName)

# 将索引信息转换为列表,并合并列名
indexList = []
for keyName, indexInfo in indexDict.items():
indexList.append({
"keyName": keyName,
"columns": ", ".join(indexInfo["columns"]), # 合并列名
"nonUnique": indexInfo["nonUnique"], # 使用 Yes/No
"seqInIndex": indexInfo["seqInIndex"],
"indexType": indexInfo["indexType"]
})

# 组织表信息
tableInfo = {
"name": tableName,
"remark": tableRemark, # 备注
"list": columnList,
"indexList": indexList # 添加索引信息
}
metadata.append(tableInfo)

# 关闭数据库连接
conn.close()

return metadata

def main():
# 数据库连接信息
host = "192.168.1.145" # 数据库主机
user = "root" # 数据库用户名
password = "123456" # 数据库密码
dbName = "db_sovecloud_mgr" # 数据库名称

tablesMetadata = getTableMetadata(host, user, password, dbName)

# 准备上下文字典
context = {
"tables": tablesMetadata # 将元数据放入字典中
}
# 准备模板
template = DocxTemplate("tpl.docx")
# 渲染模板并保存输出
template.render(context)
template.save("output.docx")

if __name__ == "__main__":
main()

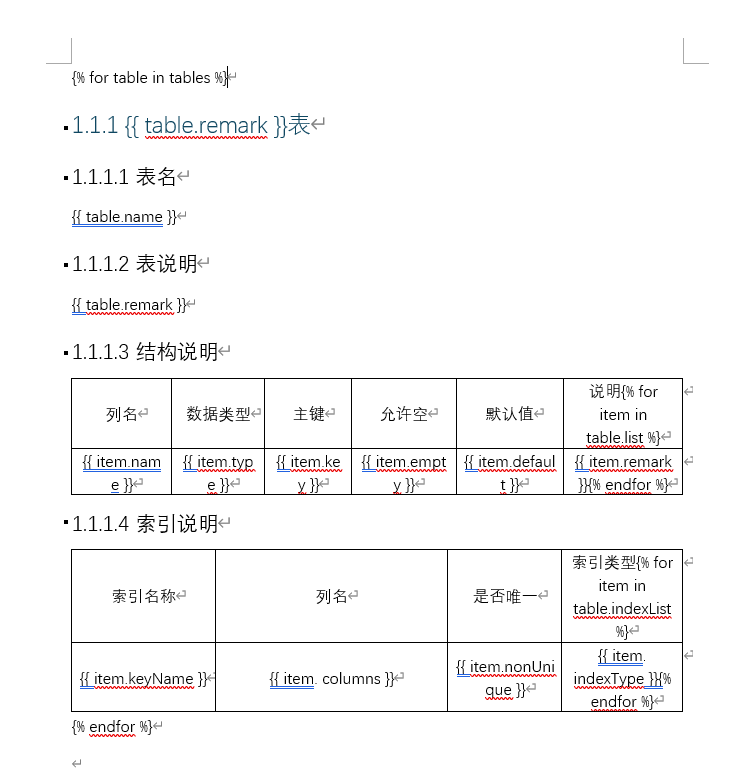

模板

image-20250211105527664

结果

image-20250211105811948
